Organizational Intelligence in Action

This article follows a real-world journey at a Softabank (Virtual bank name, BCEAO-regulated). We deliberately start with a realistically flawed, non-compliant structure — exactly what you often inherit in practice — then use stzOrgChart’s intelligence layers to detect, explain, and repair every issue, before finally simulating a strategic reorganization.

par Mansour Ayouni · dans le dépôt depuis le 2025-11-28 · cas d'usage · domaine Diagrammes et graphes

Cet article est écrit en anglais, comme la bibliothèque.

A Complete Banking Scenario with stzOrgChart – From Non-Compliant to Fully Governed

stzOrgChart is a living organizational intelligence platform that combines precise modeling, automated regulatory validation, programmable rules, semantic reasoning, graph analytics, quantitative simulation, and executive visualization — all in pure Haro, completely free.

For the full technical reference, see the main article:
stzOrgChart – The Strategic Organizational Intelligence Platform

The Inherited Reality – A Non-Compliant Starting Point

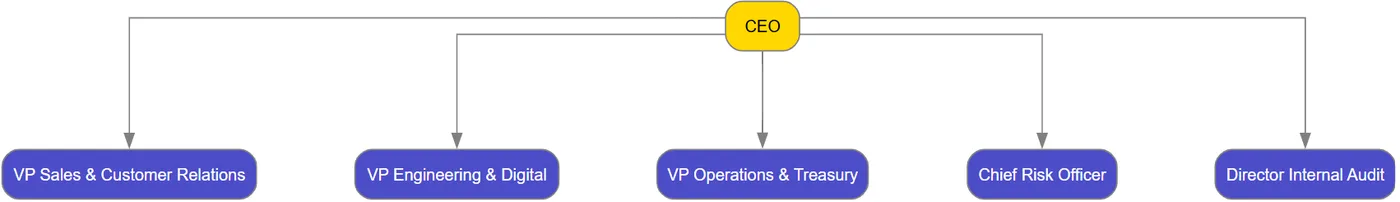

Most organizations do not begin perfect. Here is the structure the new Chief Risk Officer discovered on her first day:

Haro

oOrg = new stzOrgChart("Softabank – Inherited Structure (Flawed)")
oOrg {

    AddExecutivePositionXT("ceo", "CEO")

    AddManagementPositionXT("vp_sales", "VP Sales & Customer Relations")
    AddManagementPositionXT("vp_eng",   "VP Engineering & Digital")
    AddManagementPositionXT("vp_ops",   "VP Operations & Treasury")
    AddManagementPositionXT("dir_risk", "Chief Risk Officer")     # Reports to CEO → BCEAO violation
    AddManagementPositionXT("dir_audit","Director Internal Audit")# Reports to CEO → BCEAO violation

    ReportsTo("vp_sales",  "ceo")
    ReportsTo("vp_eng",    "ceo")
    ReportsTo("vp_ops",    "ceo")
    ReportsTo("dir_risk",  "ceo")   # Should report to Board
    ReportsTo("dir_audit", "ceo")   # Should report to Board

    # No Board of Directors at all → critical BCEAO failure

    # Staff and people
    AddPersonXT("p_ceo", "Jean-Baptiste Kouassi")
    AssignPerson("p_ceo", "ceo")

    SetPositionDepartment("vp_sales", "sales")
    SetPositionDepartment("vp_eng",   "engineering")
    SetPositionDepartment("vp_ops",   "operations")
    SetPositionDepartment("dir_risk", "risk")
    SetPositionDepartment("dir_audit","audit")

	SetLayout(:LeftRight)
    SetSpline("curved")
    View()
}

illustration

First Diagnosis – Let the Intelligence Engine Speak

We immediately run the full compliance suite:

Haro

    ? "=== REGULATORY VALIDATION ==="
    ? Validate(:BCEAO)     # → FAIL with 3 critical issues
    ? Validate(:SpanOfControl)
    ? Validate(:SegregationOfDuties)
    ? Validate(:GDPR)
    ? Validate(:SOX)
    ? Validate(:BANKING)

illustration

The structured output is devastating but precise:

BCEAO-001: No Board of Directors found
BCEAO-002: Audit function does not report to Board
BCEAO-003: Risk Management function does not report to Board
Overall status: NON-COMPLIANT

We also activate custom bank rules using Softanza’s rule engine:

Haro

    WhenNodeExists("dir_risk")
        if not ReportsDirectlyTo("dir_risk", "board")
            AddFinding("CUSTOM-RISK-001: Chief Risk Officer must report exclusively to Board",
                       :severity = :critical, :regulation = "BCEAO Art. 47")
        ok

    WhenNodeExists("dir_audit")
        if not ReportsDirectlyTo("dir_audit", "board")
            AddFinding("CUSTOM-AUDIT-001: Internal Audit must be independent",
                       :severity = :critical)
        ok

    ? "=== CUSTOM FINDINGS ==="
    ? @@NL( Anomalies() )

illustration

The system instantly highlights the exact governance gaps — no manual audit required.

Repairing the Structure – Intelligence-Guided Remediation

Using the findings as a checklist, we fix the structure in minutes:

Haro

    # 1. Create the missing Board
    AddExecutivePositionXT("board", "Board of Directors")

    # 2. Correct reporting lines for independence
    ReportsTo("ceo",       "board")   # CEO now reports to Board
    ReportsTo("dir_audit", "board")   # Independent audit
    ReportsTo("dir_risk",  "board")   # Independent risk

    # Re-run validation instantly
    ? "=== AFTER REMEDIATION ==="
    ? Validate(:BCEAO)       # → PASS
    ? @@NL( Anomalies() )    # → [] Empty – fully clean

    View() #todo ViewConformant() ViewNonConfromant()

illustration

The same code that detected the problems now confirms perfect compliance.
No external consultants. No months of workshops.

Enriching with Semantic Intelligence

With structure now solid, we layer meaning using Knowledge-Oriented Programming:

Haro

    oKG = new stzKnowledgeGraph("EcobankSemantics")
    oKG {
        AddFact("board",      :IsA, "GovernanceBody")
        AddFact("dir_risk",   :IsA, "ControlFunction")
        AddFact("dir_audit",  :IsA, "ControlFunction")
        AddFact("dir_risk",   :Criticality, "VeryHigh")
        AddFact("p_ceo",      :Tenure, 15)
        AddFact("p_ceo",      :SuccessionReadiness, "Low")

        DefineClass("ControlFunction", "Position")
    }

    ? "Control functions in the organization:"
    ? @@( oKG.Query(["?p", :IsA, "ControlFunction"]) )

illustration

Strategic Question: Should We Create a Digital Banking Division?

The Executive Committee wants to accelerate digital transformation. Proposal:

Create a new Director of Digital Banking
Move VP Engineering (and future IT Security team) under this director
Director Digital reports directly to CEO

Before committing, we simulate the impact quantitatively:

Haro

    aChanges = [
        [:type = "add_position",     :id = "dir_digital", :title = "Director Digital Banking"],
        [:type = "change_reporting", :subordinate = "vp_eng", :supervisor = "dir_digital"],
        [:type = "change_reporting", :subordinate = "dir_digital", :supervisor = "ceo"]
    ]

    ? "=== REORGANIZATION SIMULATION RESULTS ==="
    ? SimulateReorganization(aChanges)

illustration

The engine returns a precise before/after comparison:

Metric                  Before    After     Change
──────────────────────────────────────────────────
Average span of control  3.8       3.2       ▼ 15%   (healthier)
CEO direct reports       5         4         ▼ 1     (reduced bottleneck)
Max depth                3         4         ▲ 1
Betweenness CEO          0.78      0.61      ▼ 22%   (lower centralization risk)
Vacancy rate             78%       82%       ▲ 4%    (new position created)
Structural risk score    8.1       6.9       ▼ 15%   (improved resilience)

The simulation proves the reorg reduces CEO overload, lowers communication bottlenecks, and improves agility — all while creating only one new vacancy (acceptable given the strategic priority).

Decision: Approved and implemented in the same script.

Final Executive Deliverables

Haro

    # Apply the approved changes for real
    oOrg.ApplyReorganization(aChanges)

    GenerateReport("summary")
    GenerateReport("succession")    # Now flags only CEO as high-risk
    GenerateReport("compliance")    # Clean

    ColorByDepartment()
    HighlightNode("dir_digital", :color = "cyan+")  # New strategic unit
    HighlightPath("dev_a", "ceo")   # Show new reporting chain
    View()

illustration

The board receives a perfect visualization with departments in color, the new Digital unit highlighted, and all governance findings resolved.

From Chaos to Strategic Mastery – In One Afternoon

We started with a non-compliant, risky structure.
In under 150 lines of code we:

Detected every regulatory and policy breach automatically
Fixed them with surgical precision
Added semantic intelligence
Quantitatively proved a major reorganization improves resilience
Delivered board-ready reports and visuals

No Workday. No OrgVue. No Lucidchart. No $300K consulting engagement.

Just Softanza — pure, open Haro code, infinitely powerful organizational intelligence. Welcome to the future of organizational engineering.
