In Softanza, understanding organizational structure transcends simple box-and-line diagrams. Organizations need dynamic tools that can model, analyze, and visualize their human infrastructure with precision and depth. Enter stzOrgChart – a revolutionary approach to organizational modeling that transforms static charts into living, analytical systems with governance-aware intelligence.

The Foundation: Position, People, and Department Management

oOrg = new stzOrgChart("Basic_Hierarchy")
oOrg {
    SetLayout("TD")

    # Add executive position
    AddExecutivePositionXT(:ceo, "CEO") # ceo is the ID of the node and CEO it's label

    # Add management positions
    AddManagementPositionXT(:vp_sales, "VP Sales")
    AddManagementPositionXT(:vp_eng, "VP Engineering")

    # Set reporting lines
    ReportsTo(:vp_sales, :ceo)
    ReportsTo(:vp_eng, :ceo)

    # Add staff positions with attributes
    AddStaffPositionXTT(:sales_rep1, "Sales Rep 1", [:region = "North"])
    AddStaffPositionXTT(:dev1, "Developer 1", [:skill = "Backend"])

    ReportsTo(:sales_rep1, :vp_sales)
    ReportsTo(:dev1, :vp_eng)

    View()
}

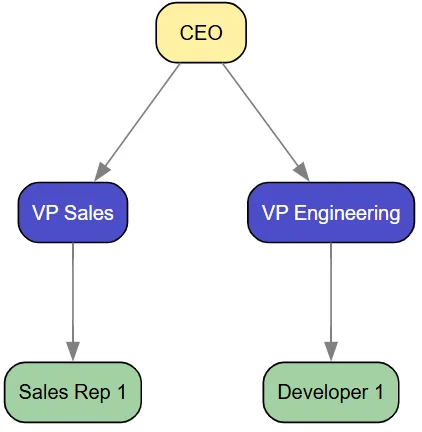

Output:

Texecutive (yellow), management (blue), and staff positions (green), creating a visually intuitive hierarchy.

NOTE: The colors and everything else are completely configurable, at the gloabl level, to cope with your taste and need, by simply editng this container at the beginning of the stzOrgChart.ring file:

$aOrgColors = [
    :board = "gold",
    :executive = "gold-",       # Lighter gold
    :management = "blue+",      # Mid-blue
    :staff = "green-",          # Green
    :operations = "blue",
    :treasury = "green",
    :risk = "orange",
    :audit = "purple",
    :hr = "pink",
    :it = "cyan",
    :sales = "blue",
    :engineering = "green-",

    :focus = "magenta+"
]

People Management with Rich Data

The true power emerges when we add people to positions with rich attribute data:

oOrg = new stzOrgChart("People_Management")
oOrg {

    AddPosition("ceo")
    AddPosition("vp")
    AddPosition("cto")

    ReportsTo("vp", "ceo")
    ReportsTo("cto", "ceo")

    # Add people with data
    AddPersonXTT("p1", "John Doe", [:tenure = 5, :performance = "High"])
    AddPersonXT("p2", "Jane Smith")

    # Assign people to positions
    AssignPerson("p1", "ceo")
    AssignPerson("p2", "vp")

    # Verify assignments and data
    ? @@NL( People() )

    # View with people emphasized
    ViewPopulated()
}

Our org chart now is populated and we can check the data about it's people by checking the outpout of the People() method:

[
		[
			[ "id", "p1" ],
			[ "name", "John Doe" ],
			[ "position", "ceo" ],
			[
				"data",
				[
					[ "tenure", 5 ],
					[ "performance", "High" ]
				]
			]
		],
		[
			[ "id", "p2" ],
			[ "name", "Jane Smith" ],
			[ "position", "vp" ],
			[ "data", [  ] ]
		]
]

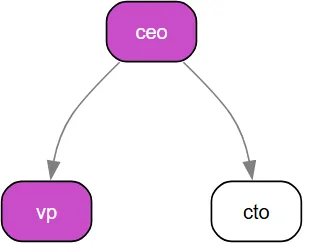

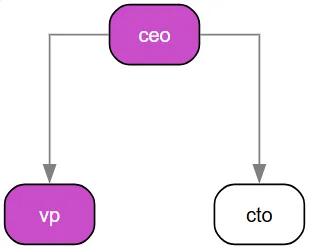

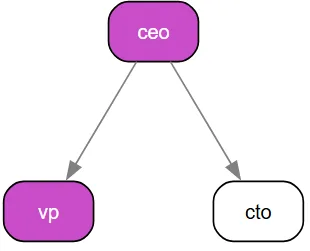

The ViewPopulated() method instantly shows, in a distinct color, the nodes of the org chart that are populated with persons ("ceo" and "vp") and those who are not (the "cto" node).

NOTE: The magenta color used here to highlight the nodes containing people is configurable in the $aOrgColors global setting we saw earlier, in particular, by modifying the :focus = "magenta+" line.

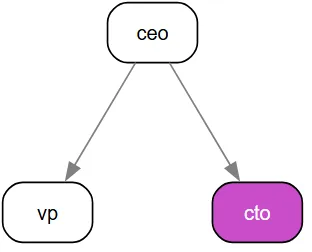

Or you can focus on the vacant positions (nodes without people assigned to them) by using ViewVacant() instead of ViewPopulated() and so you get:

Departmental Structure and Clusters

Organizations are naturally compartmentalized into departments, and stzOrgChart models this reality:

oOrg = new stzOrgChart("Department_Management")
oOrg {
    # Adding the positions and who reports to whom

    AddPositionXT(:ceo, "CEO")
    AddPositionXT(:sales_mgr, "Sales Manager")
    AddPositionXT(:eng_mgr, "Engineering Manager")

    ReportsTo(:sales_mgr, :ceo)
    ReportsTo(:eng_mgr, :ceo)

    # Adding departments and filling them with positions

    AddDepartmentXTT(:exec, "EXECUTIVE", [ :ceo ])
    AddDepartmentXTT(:sales, "SALES", [ :sales_mgr ])
    AddDepartmentXTT(:eng, "ENGINEERING", [ :eng_mgr ])

    # Set position departments
    SetPositionDepartment(:ceo, "EXECUTIVE")
    SetPositionDepartment(:sales_mgr, "SALES")
    SetPositionDepartment(:eng_mgr, "ENGINEERING")

    # Verify
    ? @@NL( Departments() ) + NL

    ? @@NL( Department("SALES") )

    ViewByDepartment()
}

The full content of the departments is returned using Departments()method:

And you can call the data of just a given department using Department(cName) like in Department("SALES") above.

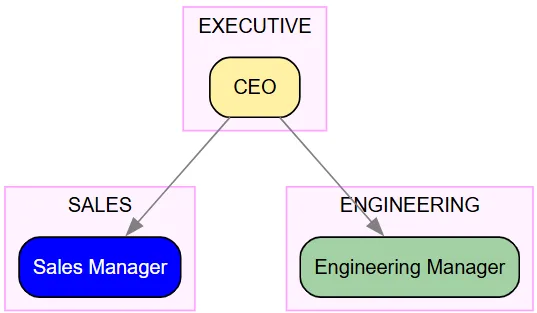

Finally, these departments are automatically reflected on the visual org chart as three clusters, each containing all the nodes assigned to that department. Each cluster appears as a box that encloses the department’s nodes:

NOTE: If the default magenta cluster color isn’t what you prefer, you can change it effortlessly. Just add a line such as SetClusterColor("gray") before calling View(), and the new color will be applied to all clusters.

You can also set the default cluster color globally by editing the stzDiagram.ring file and assigning:

$cDefaultClusterColor = "gray"

(This will apply the color automatically to all future org charts unless overridden in code.)

The Unified Validation System: Organizational Intelligence at Scale

stzOrgChart implements validation as a multi-level intelligence system. At the organizational level, you get HR-specific validators (BCEAO governance, span of control, succession planning). But because stzOrgChart inherits from stzDiagram (which inherits from stzGraph), you also gain access to domain validators (SOX, GDPR, Banking) and structural validators (DAG, reachability, completeness). This creates a comprehensive validation platform that spans from graph theory to regulatory compliance.

" Quick Start: Default Organizational Validators

Every stzOrgChart comes with five organizational validators out of the box. Let's build a simple bank structure to see them in action:

oBank = new stzOrgChart("International_Bank")
oBank {
    SetTheme("pro")

    # Build basic structure
    AddExecutivePositionXT("board", "Board of Directors")
    AddExecutivePositionXT("ceo", "CEO")
    AddManagementPositionXT("cfo", "CFO")
    AddManagementPositionXT("treasury_head", "Treasury Head")

    ReportsTo("ceo", "board")
    ReportsTo("cfo", "ceo")
    ReportsTo("treasury_head", "cfo")

    # What validators are active?
    ? "Default validators:"
    ? @@NL( Validators() )
}

Output:

Default validators:
[ "bceao", "sod", "soc", "vacancy", "succession" ]

Reading this: Your org chart automatically checks for West African banking compliance (BCEAO), segregation of duties (SOD), span of control (SOC), vacant positions, and succession planning. These are organizational concerns—exactly what HR and governance teams need.

Boolean Validation: Quick Health Checks

The fastest way to check organizational health is with boolean validation. This gives you instant red-light/green-light indicators:

oBank {
    # Quick compliance check
    ? "Overall organizational health:"
    ? IsValid()
}

Output:

Overall organizational health:
0

Reading this: 0 means FALSE—at least one validator failed. The organization has issues that need attention. This is perfect for dashboards or automated alerts where you need instant status.

Detailed Validation: Understanding the Problems

When validation fails, you need to know what's wrong and where. That's what detailed validation provides:

oBank {
    ? "Detailed analysis:"
    ? @@NL( Validate() )
}

Output (excerpt):

[
    [ "status", "fail" ],
    [ "validatorsrun", 5 ],
    [ "validatorsfailed", 2 ],
    [ "totalissues", 10 ],
    [ "results", [
        [
            [ "status", "fail" ],
            [ "domain", "vacancy" ],
            [ "issuecount", 4 ],
            [ "issues", [ "Vacant positions: 4" ] ],
            [ "affectednodes", [ "board", "cfo", "treasury_head", "ceo" ] ]
        ],
        [
            [ "status", "fail" ],
            [ "domain", "succession" ],
            [ "issuecount", 6 ],
            [ "issues", [
                "No successor: ceo",
                "No successor: cfo",
                "No successor: treasury_head"
            ]],
            [ "affectednodes", [ "ceo", "cfo", "treasury_head" ] ]
        ]
    ]],
    [ "affectednodes", [ "board", "cfo", "treasury_head", "ceo" ] ]
]

Reading this: The report tells you: - 2 of 5 validators failed - 10 total issues found across the organization - Vacancy validator found 4 empty positions - Succession validator found 3 positions without backups - The affectedNodes array lists every problematic position

This is what auditors and analysts need—specific problems with evidence.

Visual Validation: Seeing Problems in Context

The affectedNodes array enables direct visualization. Let's add the missing validation→view bridge methods and use them:

# stzOrgChart - Add these methods to enable visual validation

def ViewValidation(aValidationResult)
    # Extract affected nodes and apply focus
    if HasKey(aValidationResult, :affectedNodes)
        This.ApplyFocusTo(aValidationResult[:affectedNodes])
    ok
    This.View()

def ViewXT(pcValidator)
    # Validate and view in one action
    aResult = This.ValidateXT(pcValidator)
    This.ViewValidation(aResult)

Now validation and visualization become seamless:

oBank {
    # Assign some people to reduce vacancy issues
    AddPersonXT("p1", "Alice Chen")
    AddPersonXT("p2", "Bob Kumar")
    AssignPerson("p1", "ceo")
    AssignPerson("p2", "cfo")

    # View succession risks directly
    ViewXT(:Succession)
}

This opens your org chart with the three positions lacking successors highlighted in magenta (the default focus color). No intermediate steps—validation flows directly into visualization.

Single Validator Deep Dive

Sometimes you need to focus on one specific concern. The XT suffix (extended) provides both boolean and detailed validation for individual validators:

oBank {
    ? "Is span of control acceptable?"
    ? IsValidXT(:SOC)

    ? NL + "Succession planning details:"
    ? @@NL( ValidateXT(:Succession) )
}

Output:

Is span of control acceptable?
1

Succession planning details:
[
    [ "status", "fail" ],
    [ "domain", "succession" ],
    [ "issuecount", 6 ],
    [ "issues", [
        "No successor: ceo",
        "No successor: cfo",
        "No successor: treasury_head"
    ]],
    [ "affectednodes", [ "ceo", "cfo", "treasury_head" ] ]
]

Reading this: Span of control passes (1 = TRUE)—no manager is overloaded. But succession planning fails—three critical positions have no designated backups. The affectedNodes array identifies exactly which positions are at risk.

Multi-Validator Analysis: Comparative Auditing

For comprehensive audits, run multiple validators simultaneously:

oBank {
    SetPositionDepartment("treasury_head", "treasury")

    # Compare two compliance frameworks
    ? "Banking vs BCEAO compliance:"
    ? @@NL( ValidateXT([ :Banking, :BCEAO ]) )
}

Output:

[
    [ "status", "pass" ],
    [ "validatorsrun", 2 ],
    [ "validatorsfailed", 0 ],
    [ "totalissues", 0 ],
    [ "results", [
        [
            [ "status", "pass" ],
            [ "domain", "banking" ],
            [ "issuecount", 0 ],
            [ "issues", [  ] ]
        ],
        [
            [ "status", "pass" ],
            [ "domain", "BCEAO_governance" ],
            [ "issuecount", 0 ],
            [ "issues", [  ] ]
        ]
    ]]
]

Reading this: Both validators passed. The organization satisfies universal banking controls (fraud prevention, dual control) AND West African regulatory requirements (governance structure, audit independence). The aggregated report shows you passed 2 of 2 validators with zero total issues.

Understanding Validator Scope: Banking vs BCEAO

These two validators check different concerns:

oBank {
    ? "═══ BANKING VALIDATOR ═══"
    ? "Scope: Universal operational controls"
    ? "Focus: Fraud prevention, dual control, IT security"
    ? @@NL( ValidateXT(:Banking) )

    ? NL + "═══ BCEAO VALIDATOR ═══"
    ? "Scope: West African banking zone regulations"
    ? "Focus: Governance structure, board composition, audit independence"
    ? @@NL( ValidateXT(:BCEAO) )
}

Banking validates operational controls that apply globally—fraud detection, payment approval processes, IT segregation. BCEAO validates governance structures required in the West African Economic and Monetary Union—board presence, audit reporting lines, risk management functions. Both are essential but check different layers of the organization.

Custom Validator Sets: Regional Compliance

Override the defaults to focus on specific requirements:

oBank {
    ? "Original defaults:"
    ? @@NL( Validators() )

    # Bank in BCEAO region needs both governance and operational controls
    SetValidators([ :BCEAO, :Banking, :SOD, :SOC ])

    ? NL + "Custom validators for BCEAO region:"
    ? @@NL( Validators() )

    ? NL + "Running IsValid() with custom set:"
    ? IsValid()
}

Output:

Original defaults:
[ "bceao", "sod", "soc", "vacancy", "succession" ]

Custom validators for BCEAO region:
[ "bceao", "banking", "sod", "soc" ]

Running IsValid() with custom set:
1

Reading this: You've replaced the default organizational validators with a custom set focused on regulatory compliance. Now IsValid() runs only these four validators. The result (1 = TRUE) means your bank passes all regional requirements.

Inherited Power: Domain Validators from stzDiagram

Because stzOrgChart inherits from stzDiagram, you can run workflow and compliance validators originally designed for business processes:

oBank {
    # Add operational workflow properties
    SetNodeProperty("treasury_head", "domain", "financial")
    SetNodeProperty("treasury_head", "requiresApproval", 1)

    # Run diagram-level validators on org structure
    ? "SOX compliance (from stzDiagram):"
    ? @@NL( ValidateXT(:SOX) )

    ? NL + "GDPR compliance (from stzDiagram):"
    ? @@NL( ValidateXT(:GDPR) )
}

Output:

SOX compliance (from stzDiagram):
[
    [ "status", "pass" ],
    [ "domain", "sox" ],
    [ "issuecount", 0 ],
    [ "issues", [  ] ]
]

GDPR compliance (from stzDiagram):
[
    [ "status", "pass" ],
    [ "domain", "gdpr" ],
    [ "issuecount", 0 ],
    [ "issues", [  ] ]
]

Reading this: Your org chart passes Sarbanes-Oxley (financial controls) and GDPR (data protection) requirements. These validators come from the parent stzDiagram class but work seamlessly on organizational structures. This is the power of inheritance—you get three validation levels in one object.

Structural Intelligence: Graph Validators from stzGraph

Go deeper still—validate the mathematical structure of your organization using graph theory validators from stzGraph:

oBank {
    # Check structural integrity
    ? "DAG validation (from stzGraph):"
    ? @@NL( ValidateXT(:DAG) )

    ? NL + "Reachability validation (from stzGraph):"
    ? @@NL( ValidateXT(:Reachability) )
}

Output:

DAG validation (from stzGraph):
[
    [ "status", "pass" ],
    [ "domain", "dag" ],
    [ "issuecount", 0 ],
    [ "issues", [  ] ],
    [ "affectednodes", [  ] ]
]

Reachability validation (from stzGraph):
[
    [ "status", "pass" ],
    [ "domain", "reachability" ],
    [ "issuecount", 0 ],
    [ "issues", [  ] ],
    [ "affectednodes", [  ] ]
]

Reading this: Your org chart is a DAG (Directed Acyclic Graph)—no circular reporting relationships exist. All positions are reachable—every employee has a path to the board. These are structural guarantees that prevent organizational pathologies like reporting loops or isolated islands.

Practical Workflow: Regional Bank Audit

Here's how a real compliance audit might flow:

oBank = new stzOrgChart("Regional_Bank_Audit")
oBank {
    SetTheme("pro")
    SetTitleVisibility(TRUE)

    # Build structure...
    AddExecutivePositionXT("board", "Board of Directors")
    AddExecutivePositionXT("ceo", "CEO")
    AddManagementPositionXT("cro", "Chief Risk Officer")
    AddManagementPositionXT("cao", "Chief Audit Officer")

    ReportsTo("ceo", "board")
    ReportsTo("cro", "ceo")
    ReportsTo("cao", "board")  # BCEAO requirement: audit→board

    SetPositionDepartment("cro", "risk")
    SetPositionDepartment("cao", "audit")

    # Assign people
    AddPersonXT("p1", "Alice Chen")
    AddPersonXT("p2", "Bob Kumar")
    AssignPerson("p1", "ceo")
    AssignPerson("p2", "cao")

    # AUDIT WORKFLOW
    ? BoxRound("REGULATORY COMPLIANCE AUDIT")

    # Step 1: Quick check
    if IsValidXT([ :Banking, :BCEAO ])
        ? "✓ Compliant with both Banking and BCEAO standards"
    else
        ? "✗ Non-compliant - running detailed analysis..."

        aAudit = ValidateXT([ :Banking, :BCEAO ])
        ? @@NL( aAudit )

        ? NL + "Audit Summary:"
        ? "  Validators run: " + aAudit[:validatorsRun]
        ? "  Failed: " + aAudit[:validatorsFailed]
        ? "  Total issues: " + aAudit[:totalIssues]
        ? "  Affected positions: " + len(aAudit[:affectedNodes])

        # Step 2: Visual inspection
        ? NL + "Generating visual report..."
        ViewValidation(aAudit)
    ok
}

This workflow gives you: 1. Instant status (boolean check) 2. Detailed evidence (full report) 3. Visual inspection (highlighted org chart)

All in a few lines of code.

The Complete API Reference

Boolean validation (fast status checks):

IsValid()                    # Run default validators → 0 or 1
IsValidXT(pcValidator)       # Single validator → 0 or 1
IsValidXT([v1, v2, ...])     # Multiple validators → 0 or 1

Detailed validation (analysis & evidence):

Validate()                   # Full report with defaults → hashlist
ValidateXT(pcValidator)      # Single detailed report → hashlist
ValidateXT([v1, ...])        # Aggregated multi-report → hashlist

Visual validation (immediate visualization):

ViewValidation(aResult)      # View with pre-computed validation
ViewXT(pcValidator)          # Validate + view in one action

Configuration:

Validators()                 # See current defaults → list
SetValidators(aList)         # Override defaults
DefaultValidators()          # See class-level defaults → list

Available Validators by Level

Organizational (stzOrgChart): - :BCEAO - West African banking governance - :SOD / :SegregationOfDuties - Conflict of interest prevention - :SOC / :SpanOfControl - Manager overload detection - :Vacancy - Staffing gap analysis - :Succession - Continuity risk assessment

Domain (stzDiagram - inherited): - :SOX - Sarbanes-Oxley compliance - :GDPR - Data protection compliance - :Banking - Universal banking controls

Structural (stzGraph - inherited): - :DAG - Directed acyclic graph validation - :Reachability - Connectivity analysis - :Completeness - Decision path validation

Why This Unifie Validation System Matters

Traditional org chart tools show structure. Softanza's stzOrgChart provides intelligence:

• Prevention - Structural validators catch organizational pathologies before they manifest
• Detection - Domain validators identify compliance gaps before audits
• Evidence - Every validation returns specific affected nodes with issue counts
• Visualization - Problems appear in organizational context, not abstract reports
• Scalability - Same API works for 10-person startups and 10,000-person enterprises

The unified validation system transforms org charts from static diagrams into strategic intelligence platforms that predict, prevent, and document organizational health.

Simulation and Scenario Planning

Perhaps the most strategic feature of stzOrgChart is its ability to simulate organizational changes before implementing them in reality:

# Create baseline snapshot
? CreateSnapshot("Initial")

# Define reorganization changes
aChanges = [
    [:type = "change_reporting", :subordinate = "vp2", :supervisor = "vp1"],
    [:type = "add_position", :id = "new_pos", :title = "New Position"],
    [:type = "remove_position", :position = "vp1"]
]

# Analyze impact
? SimulateReorganization(aChanges)

The simulation engine quantitatively analyzes the impact of proposed changes on key organizational metrics:

[
    [
        "before",
        [
            [ "spanofcontrol", 2 ],
            [ "vacancyrate", 100 ]
        ]
    ],
    [
        "after",
        [
            [ "spanofcontrol", 0 ],
            [ "vacancyrate", 100 ]
        ]
    ],
    # Detailed changes applied
]

This enables data-driven decision making for restructuring initiatives, merger integrations, and strategic realignments.

Technical Power: Graph Theory Meets Business Intelligence

Under the hood, stzOrgChart leverages advanced graph theory algorithms inherited from its parent class stzGraph.

These capabilities enable sophisticated analyses like: - Identifying communication bottlenecks that slow decision-making - Detecting single points of failure in critical functions - Optimizing organizational depth to balance control and agility - Quantifying influence networks beyond formal reporting lines

Let's see some of them by example :

oOrg = new stzOrgChart("Graph_Analysis")
oOrg {

    AddPosition("a")
    AddPosition("b")
    AddPosition("c")
    AddPosition("d")
    AddPosition("e")

    ReportsTo("b", "a")
    ReportsTo("c", "b")
    ReportsTo("d", "c")
    ReportsTo("e", "a")  # Parallel branch

    # Cyclic check (no cycle)
    ? CyclicDependencies()  # FALSE

    # Add cycle
    ReportsTo("a", "d")  # Creates cycle a->b->c->d->a
    ? CyclicDependencies()  # TRUE

    # Remove cycle for further tests
    Disconnect("a", "d")
    ? CyclicDependencies()  #--> FALSE

    # Connected components
    ? @@( ConnectedComponents() )  # [["a", "b", "c", "d", "e"]]

    # Articulation points (removal increases components)
    ? @@( ArticulationPoints() ) #--> [ "a", "d" ]

    # Betweenness centrality
    ? BetweennessCentrality("b")  #--> 0.25

    # Closeness centrality
    ? ClosenessCentrality("a")  #--> 0.57

    # Diameter (longest shortest path)
    ? Diameter()  #--> 4

    # Average path length
    ? AveragePathLength() #--> 2

    # Clustering coefficient
    ? ClusteringCoefficient("a")  #--> 0 Low since branches don't connect

}

NOTE: To get a detailed idea about the powerful features you can get for stzGraph, right inside your stzOrgChart objects, read this article.

11. Rule-Based Programming in stzOrgChart

Because stzOrgChart inherits directly from stzGraph, it has access to the complete Softanza rule engine — one of the sophisticated features in the library.

Rules transform a static org chart into a live, self-validating governance system. You encode your organization's policies once, and the chart continuously monitors itself.

oOrg = new stzOrgChart("RuleGoverned")
oOrg {

    # Only one root allowed
    When( len(DependencyFreeNodes()) > 1 )
        AddAnomaly("ORG-001: Multiple root nodes – only Board or CEO may be root")

    # BCEAO/Basel III – Risk Officer must report directly to Board or CEO
    WhenNodeExists("dir_risk")
        if not ( ReportsDirectlyTo("dir_risk", "board") or ReportsDirectlyTo("dir_risk", "ceo") )
            AddAnomaly("RISK-001: Chief Risk Officer must report to Board or CEO")
        ok

    # Internal HR policy – every manager must have at least 3 direct reports
    WhenNodeHasAttribute(:level, "management")
        if NumberOfDirectReports( This.CurrentNode() ) < 3
            AddAnomaly("HR-012: Manager " + This.CurrentNode() + " has insufficient span of control")
        ok

    # Sales department minimum staffing policy
    WhenDepartmentExists("Sales")
        if PositionsInDepartment("Sales").len() < 6
            AddAnomaly("SALES-001: Sales department below minimum required headcount")
        ok

    # Show results
    ? "CUSTOM RULE Anomalies:"
    ? @@NL( Anomalies() )
    ShowAnomalies()   # highlights offending nodes in red
}

Rules are evaluated instantly after every structural change. They perfectly complement the built-in Validate(:BCEAO), Validate(:SpanOfControl), etc., giving you unlimited domain-specific governance.

12. Knowledge-Oriented Programming (KOP) With stzOrgChart

By combining stzOrgChart with stzKnowledgeGraph classes, yet an other powerful class of the Softanza Graph Module, the organizational structure becomes a full semantic knowledge engine you can query in near-natural business language.

oKG = new stzKnowledgeGraph("BankSemantics")
oKG {

    # Facts derived from the org chart (can be auto-generated in future versions) #TODO Make them now!
    AddFact("ceo",       :IsA,         "ExecutivePosition")
    AddFact("dir_risk",  :IsA,         "ControlFunction")
    AddFact("vp_sales",  :ReportsTo,   "ceo")
    AddFact("vp_sales",  :InDepartment,"Sales")
    AddFact("vp_sales",  :Criticality, "High")
    AddFact("p_fatou",   :Holds,       "vp_sales")
    AddFact("p_fatou",   :HasSkill,    "RevenueGrowth")
    AddFact("p_fatou",   :Tenure,      8)

    # Ontology
    DefineClass("ControlFunction", "Position")
    DefineClass("ExecutivePosition", "Position")

    # Business-oriented queries
    ? "Who reports directly to the CEO?"
    ? @@( Query(["?who", :ReportsTo, "ceo"]) )

    ? "Which positions are Control Functions?"
    ? @@( Query(["?pos", :IsA, "ControlFunction"]) )

    ? "Who has tenure > 5 years and holds a critical role?"
    ? @@( Query(["?person", :Tenure, "?years"]) )   # then filter in Haro if needed

    ? "Roles similar to VP Sales (shared predicates)"
    ? @@NL( SimilarTo("vp_sales") )
}

The fusion of structural graph + semantic triples delivers hybrid intelligence: graph algorithms reveal bottlenecks, KOP explains why they matter from a business perspective.

Visual Plasticity: Configuring the OrgChart Appearance

Most of the smart defaults provided by stzOrgChart are already optimized for clarity and consistency, and in many cases you won’t need to change anything. Still, every aspect is customizable—either at the stzOrgChart level or at its parent class stzDiagram, which provides a rich visual foundation.

As demonstrated earlier, you can customize global values such as:

• The list of organizational colors via the global $aOrgColors
• The default cluster color via $cDefaultClusterColor
• And many additional visual parameters

We also saw how to apply a specific cluster color only to the current org chart using SetClusterColor(). Following the same approach, you can personalize many other visual aspects:

• SetEdgeColor("blue-")
• SetLayout(:LeftRight)
• …and more.

Choosing the spline style (edge style)

You can also choose the type of splines (edge drawing style) to use:

• SetSplines("ortho") – orthogonal step-like connectors
• SetSplines("splines") – smooth direct arrows (the default style used in previous visuals)
• Other options include: "line", "polyline", "curved", etc.

Example: Switching to Orthogonal Splines

Here is one of our previous examples, revisited to use the orthogonal spline style:

oOrg = new stzOrgChart("People_Management")
oOrg {

    SetSplines("ortho")   # Other options: splines, line, polyline, curved, etc.

    AddPosition("ceo")
    AddPosition("vp")
    AddPosition("cto")

    ReportsTo("vp", "ceo")
    ReportsTo("cto", "ceo")

    # Add people with data
    AddPersonXTT("p1", "John Doe", [:tenure = 5, :performance = "High"])
    AddPersonXT("p2", "Jane Smith")

    # Assign people to positions
    AssignPerson("p1", "ceo")
    AssignPerson("p2", "vp")

    # Verify assignments and data
    ? @@NL( People() )

    # View with people emphasized
    ViewPopulated()
}

The org chart now turns orthogonal:

Switch to:

SetSplines("curved")

and you get a curved connector style:

Beyond These Options

These examples represent only a small portion of what’s possible, because stzOrgChart inherits all customization capabilities from the powerful stzDiagram class.

Anything you can visually configure in stzDiagram can also be applied directly to stzOrgChart.

For more information on the stzDiagram class, refer to the dedicated article: #TODO

Business User Accessibility: Beyond Programming

stzOrgChart bridges the gap between technical and business users through its dedicated .stzorg file format. Business users can edit organizational structures directly in text files without writing code:

orgchart "Banking Structure"

positions
    ceo
        title: CEO
        level: executive
        department: executive
        reportsTo: board

    vp_sales
        title: VP Sales
        level: management
        department: sales
        reportsTo: ceo

people
    p1
        name: Ali Mamane
        data: {tenure: 5, performance: "High"}

    p2
        name: Salimatou Touré

assignments
    p1 -> ceo
    p2 -> vp_sales

departments
    sales
        name: Sales Department
        positions: ["vp_sales", "sales_mgr1", "sales_mgr2"]

Loading this structure from the text file and visualizing it requires minimal code:

oOrgChart = new stzOrgChart("Imported_Org")
oOrgChart {
    Import("banking_structure.stzorg")
    View()
}

Now, all the stzOrgChart features are accessible by code, and you can edit the text file again to change the org chart structure, and then load it again. This accessibility makes organizational intelligence available to all stakeholders, not just technical teams.

Generating your Org Chart File

stzOrgChart can generate your organizational chart in multiple formats—images (PNG, JPEG), vector files (SVG, PDF), and any other format supported by the Graphviz DOT engine used internally to render the graph.

Exporting is as simple as calling SetOutput(cFormat):

oOrgChart = new stzOrgChart("Imported_Org")
oOrgChart {
    Import("banking_structure.stzorg")
    SetOutput("PDF") # SVG is the default form.
    View()
}

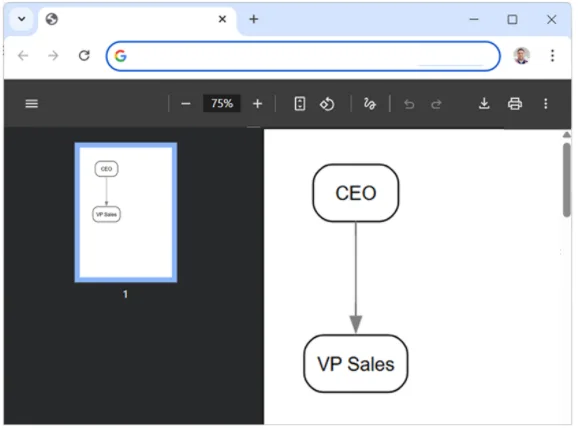

This produces a PDF file that opens automatically in your browser or your system’s default PDF viewer:

In practice, you can choose your export format based on your needs:

• SVG — Ideal for interactive web applications and scalable visuals
• PDF — Best for formal documents, reports, and printing
• PNG or other bitmap formats — Useful for presentations, slides, and email sharing

Exporing the orgchart

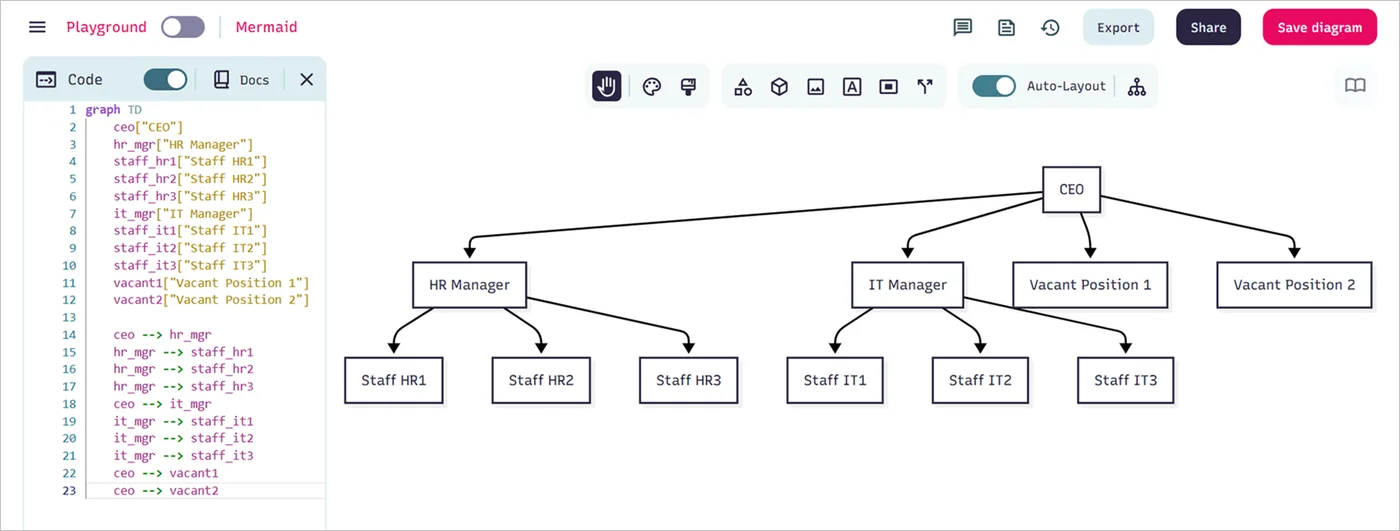

Mermaid and others

Softanza Advantage: Why stzOrgChart Outperforms the Competition

The landscape of organizational charting tools is crowded with solutions that focus primarily on visualization. However, stzOrgChart stands apart by delivering a complete organizational intelligence platform that integrates governance, analytics, and simulation capabilities in a uniquely accessible architecture. The following comparison demonstrates why Softanza's approach represents the future of organizational design:

Key Differentiators That Matter

• The Integrated Intelligence Approach: Unlike visualization-only tools (D3.js, Visio), stzOrgChart treats organizational structure as a living analytical system. It allows leaders to toggle between compliance views, risk heatmaps, and succession planning perspectives without rebuilding charts from scratch.

• Governance as Code: While enterprise HRIS platforms bury compliance rules in configuration menus, stzOrgChart exposes governance standards as programmable validations. This enables version control, automated testing, and continuous compliance monitoring—capabilities unavailable in static diagramming tools.

• Simulation-First Mindset: Most organizational tools present a snapshot in time. stzOrgChart's simulation engine quantifies the impact of proposed changes on span of control, vacancy rates, and risk exposure before decisions are made—turning reorganization from guesswork into engineering.

• Business-Technical Bridge: The .stzorg file format eliminates the traditional divide between business analysts and developers. HR professionals can edit organizational structures in plain text while developers build sophisticated analytics on the same foundation—a duality impossible in pure GUI tools or academic graph libraries.

• Total Ownership Cost: Enterprise platforms charge premium prices for features that stzOrgChart delivers with elegant simplicity. Organizations avoid vendor lock-in while maintaining complete control over their organizational data and intelligence workflows.

This isn't just organizational charting—it's organizational engineering with full strategic ownership.

Conclusion: The Strategic Value of Organizational Intelligence

stzOrgChart represents far more than a diagramming tool—it's a strategic intelligence platform that transforms how organizations understand and optimize their human infrastructure. By integrating graph theory, governance frameworks, simulation capabilities, and multi-dimensional visualization, stzOrgChart enables leaders to:

• Quantify organizational health through validated metrics rather than intuition
• Simulate restructuring impacts before committing resources to change
• Identify hidden risks in reporting structures and succession planning
• Ensure regulatory compliance through automated governance validation
• Optimize decision-making velocity by analyzing communication pathways
• Visualize complex relationships through layered analytical perspectives

Whether you're an HR executive evaluating talent pipelines, a compliance officer ensuring regulatory adherence, a restructuring consultant optimizing spans of control, or a CEO planning digital transformation, stzOrgChart provides the analytical foundation for making confident, data-driven decisions about your organization's most valuable asset—your people.

Related reading

• stzGraph: The Art of Connected Thinking
• Intelligence in Motion: Graph Planning in Softanza
• stzGraph — Modeling Knowledge Through Structure
• Organizational Intelligence in Action

Cite

Mansour Ayouni. "Introducing stzOrgChart - The Strategic Organizational Intelligence Platform". Softanza narrations, 2025. https://mayouni.github.io/stzsite/en/narrations/stzorgchartdoc.html

Not run: its code touches files, the network, the clock or chance. The article is published as written; its blocks are illustrations. The code of the articles is Haro code. Where an article was written before the language took its present name, the name was changed and nothing else. Genre, area and series read from the file's name, the year from its first commit: derived, until the article carries its own header. The file on GitHub(opens in a new tab)
